The objective of this lesson is to practise the Coordinated use of Aileron and Rudder, to achieve gentle turns without any adverse yaw, slip or skid.
This is where you get to use the stick and rudder together, making gentle turns whilst holding the string “in the middle”. The string can only be held in the middle if the air is going straight backwards over the glider. Being pedantic for a second, the air isn’t going anywhere very much – it is the glider that is moving through the air. But it is easier to think in terms of the air flowing straight back over the glider, or off to one side. So, let’s keep it flowing backwards for now, by ensuring we are pointing directly into the airflow.
The stick and rudder are always used together. In normal flight, if you move the stick left to roll left, you will apply left rudder at the same time to counteract the adverse yaw. How much rudder you apply depends on the glider – in a “well coordinated” glider, as most modern gliders are, it is always best to start by applying a similar pressure to each. You will soon develop a feel for what is needed.
Start fairly gently, as you will have done in the previous lessons. It’s likely you will need a matching movement on each control: Half way left on the stick, coordinated with half of the available left rudder pedal movement for instance. Watch the string out of the corner of your eye – apart from lookout, your attention will be over the nose.
If the string moves to the right as you turn, counteract it by applying some more left rudder. If the string moves left, apply some more right rudder.
Beware of over-correcting with the rudder, especially at low speeds. It is a powerful control, and as we have seen, if over-used it will cause the wing to drop suddenly

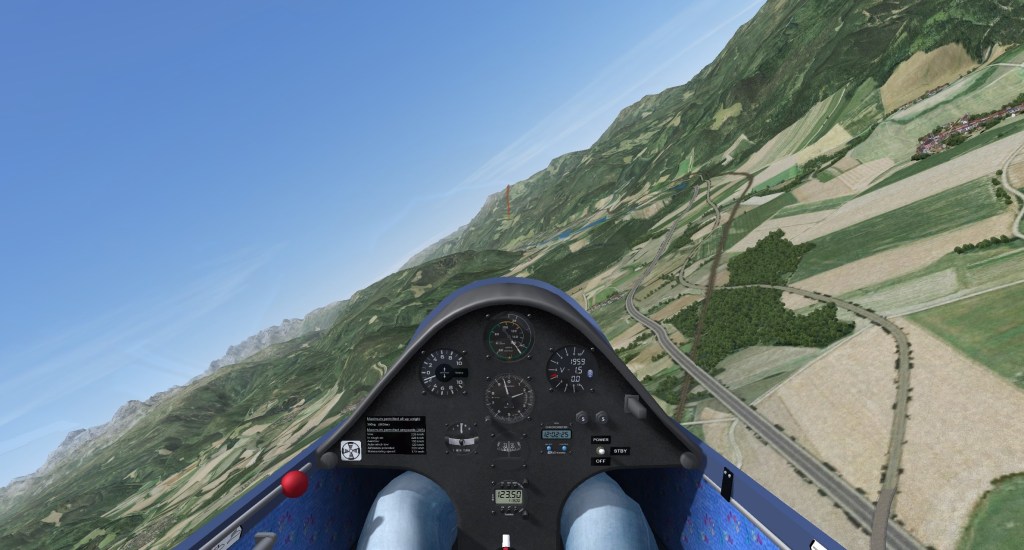

The goal here is to make small rolls left and right, just to get the feel for coordinating the aileron and rudder. After rolling left a short way, roll right again, so that you roll on a heading – i.e. continue more or less towards your target, rolling either side of it as you practise. You will probably need to adjust the attitude (elevator) after the rolls to return to the desired speed.
Alternative Video without animation
About the videos
Multiple versions of the videos are being made available:
- With animation and voiceover.
- Alternative without the animation graphics.
- As recorded in Condor Flight School. These will have messages at the top of the screen, with no additional animation or voiceover – that’s the way the Condor cookie crumbles!
The videos are suited to any device that supports YouTube. If you have trouble loading the video in the browser, click on Watch on YouTube in the lower left corner.
Further Reading and References
- Gliding From Passenger to Pilot, 2nd Edition: Pages 88
- BGA Instructors’ Manual, 4th Edition: Section 2, Chapter 7, Page 7-3
- BGA Instructors’ Reference Cards: Ex 6
- Gliding: The British Gliding Association Student Pilot Manual, Section 4.5 and website.
The GlidingSchool.com lessons were developed for Condor2. They will be updated from time to time. Visit the Downloads page for news of updates, and to request the latest version.
